732-735T

732T
• Equipped with reliable Cummins QSM11-C330 engine
• Single-handle electro-hydraulic controlled power-shift T/M, 6 forward & 3reverse shifts makes operation easy and convenient
• Hydraulic lock, auto lock/unlock NO-SPIN differential ensures stability and powerful traction
• Ideal axel load allocation provides excellent stability while cutting hard surface
• Serviceable, efficient hydraulic system enables every part to be fully used
• Box-typed frame and advanced T/M enable it to complete heavy-duty work
• A wide working range is accomplished through flexible blade suspension system and articulated frame

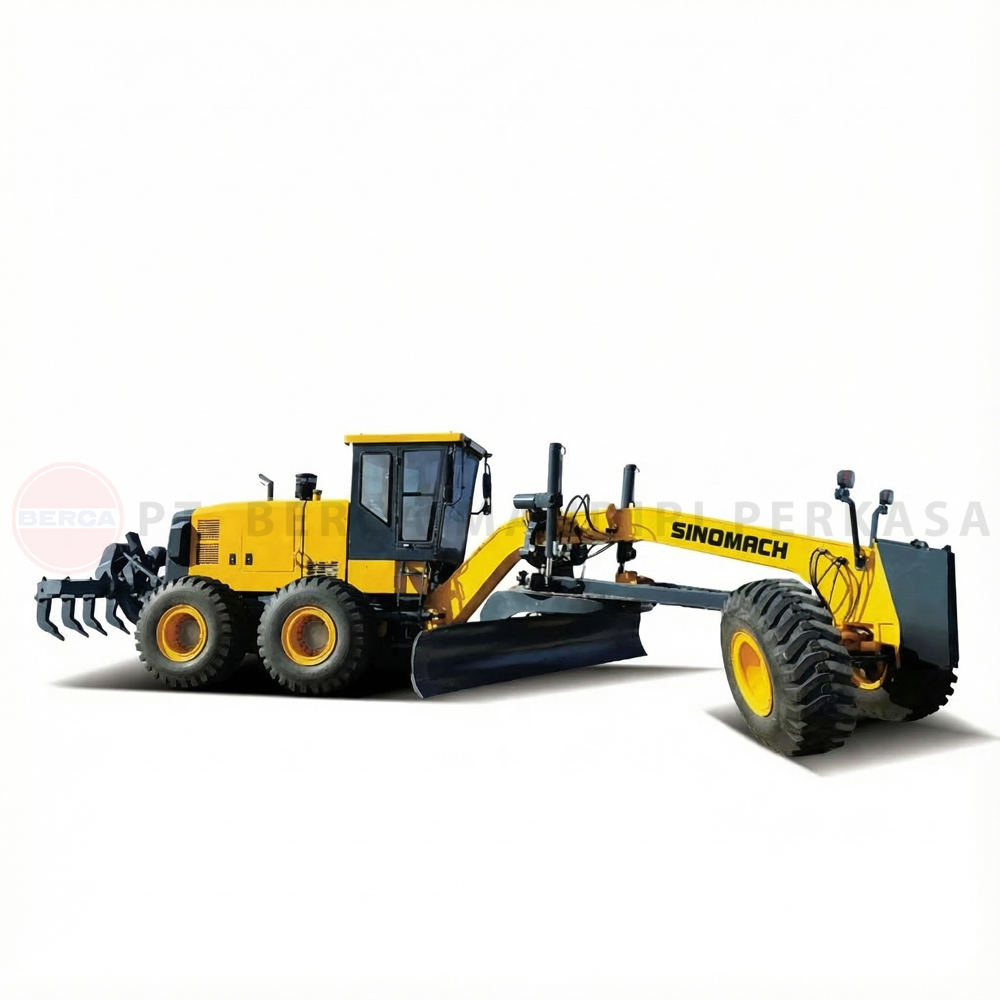

735T
• Equipped with reliable Cummins QSM11-C360 engine
• Single-handle electro-hydraulic controlled power-shift T/M, 6 forward & 3reverse shifts makes operation easy and convenient
• Hydraulic lock, auto lock/unlock NO-SPIN differential ensures stability and powerful traction
• Ideal axel load allocation provides excellent stability while cutting hard surface
• Serviceable, efficient hydraulic system enables every part to be fully used
• Box-typed frame and advanced T/M enable it to complete heavy-duty work
• A wide working range is accomplished through flexible blade suspension system and articulated frame

ModelEngine modelRated powerDimension(L×W×H)Operating weight(Standard)Travelling speed ,forwardTravelling speed ,reverseTractive force(f=0.75)Max. steering angle of front wheelsMax. lean angle of front wheelsMax. oscillation angle of front axleFrame articulation angleMin. turning radius using articulationMaximum lift above groundMaximum grading depthMaximum blade position angleBlade cutting angleCircle reversing rotationMoldboard width × height
732TCummins QSM11-C330246KW@2100rpm12500×3300×3700（mm）28000KG5.5/8.6/13.3/20.3/29/435.5/13.3/29144KN49°17°15°25°9m515mm735mm80°23°~73°360°4620×695mm
735TCummins QSM11-C360268KW@2100rpm12500×3300×3700（mm）28000KG5.4/8.2/12.7/19.3/27.5/415.4/12.7/27.5144KN49°17°15°25°9m515mm735mm80°23°~73°360°4920×695mm
